雙城風機BEPL插入式風機

BEPL 插入風機高效節能

High Efficiency Plug Fan, Backward Curved

應用

高效設計的插入式風機主要應用于高溫環境中，包括了空氣幕、除油器、集塵器、噴漆間、恒溫室、和產品干燥箱。結構緊湊，用途多樣的插入式風機有后傾式和機翼式兩種葉輪形式。

BEPL插入式風機適用于商業和工業領域的各種空氣循環需求，包括氣幕、空氣加熱器,天花板、墻壁、地板等氣室、除脂器、干燥機、集塵器、蒸發器、冷凍機、窯爐、烘爐、成套空氣處理設備、零件清洗機、閣樓、煙熏室、空間加熱器、噴漆房以及其它高溫應用場合。
BEPL插入式風機采用SWSI后彎式非過載單板機翼型葉輪設計。
其獨特的葉輪設計比其他同行機翼型葉輪效率更高，同時還能輸送不利于傳統中空機翼型葉片工作的氣流。

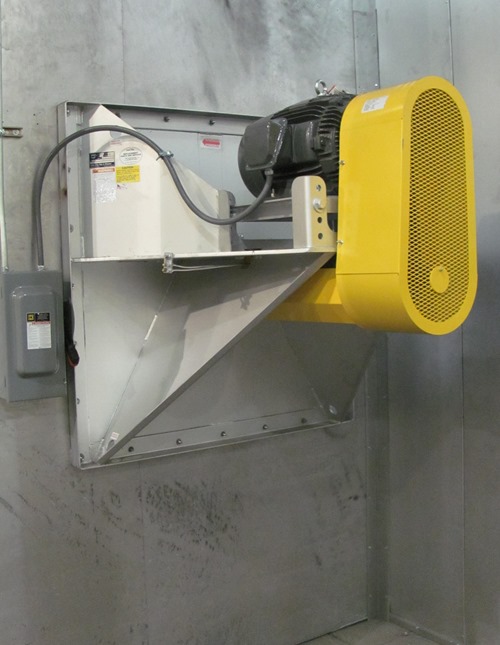

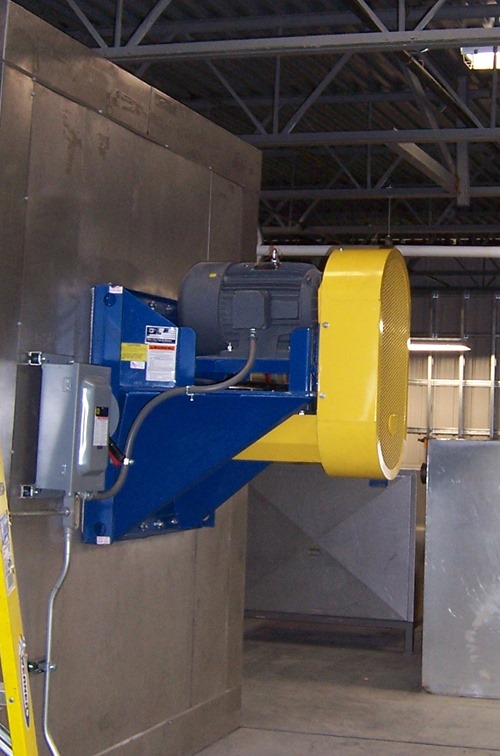

The versatility of the BEPL Plug Fan allows it to be used for air circulation in a variety of commercial and industrial applications including air curtains, air heaters, ceiling, wall and floor panel plenums, degreasers, dryers, dust collectors, evaporators, freezers, kilns, ovens, packaged air handlers, parts washers, penthouses, smoke houses, space heaters, spray booths, and other high temperature applications.

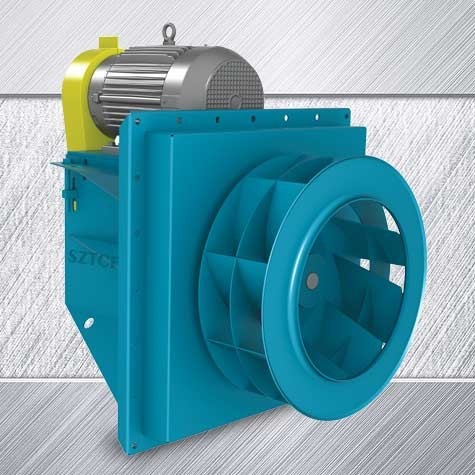

The BEPL Plug Fan features a SWSI backward curved, non-overloading, single thickness airfoil type wheel. The unique wheel design offers increased efficiency over competitor’s airfoil blade designs, yet can handle airstreams not conducive to traditional hollow airfoil shapes.

尺寸


葉輪直徑：315 mm to 1,244 mm

性能

風量大到129,124 m³/hour
靜壓達到2,983 Pa

AMCA認證的聲強和空氣動力性能
UL705認證
